Trimble BX992

Prix nous consulter Trimble BX992

Dual-antenna receiver with integrated inertial
Navigation system and MSS band demodulator

  • Trimble BX992
  • Trimble BX992
  • Trimble BX992
  • Trimble BX992
Suivant Précédent

Taking advantage of Trimble’s expertise in both GNSS and Inertial technology the Trimble BX992 module has been designed for applications requiring continuous centimeter accuracy in a compact package. By integrating inertial sensors on the same module, robust high accuracy positions and orientations are produced in all environments.

Key Features:

  • Trimble Maxwell 7 Technology
  • Onboard high accuracy inertial sensor packaged integrated with GNSS for precise position and orientation
  • 336 Channels for multi-constellation GNSS support
  • OmniSTAR/RTX Support
  • EMI shielded module
  • Compact design for mobile applications
  • Flexible RS232, USB and Ethernet interfacing
  • Centimeter level position accuracy
  • Advanced RF Spectrum Monitoring
  • Rugged IP67 Enclosure

GNSS and inertial tight integration

Taking advantage of Trimble’s expertize in both GNSS and Inertial technology the Trimble® BX992 module has been designed for applications requiring continuous centimeter accuracy in a compact package. By integrating inertial sensors on the same module, robust high accuracy positions and orientations are produced in all environments.

Trimble Maxwell 7 Technology

The Trimble BX992 supports triple frequency for the GPS, GLONASS, BeiDou and Galileo constellations. As the number of satellites in the constellations grows the BX992 is ready to take advantage of the additional signals. This delivers the quickest and most reliable RTK initializations for centimeter positioning. For applications that do not require centimeter accuracy the BX992 integrated GNSS-Inertial engine also delivers high accuracy GNSS, DGNSS positions in the most challenging environments such as urban canyons. With the latest Trimble Maxwell™ 7 Technology, the BX992 provides:

  • 2 x 336 Tracking Channels
  • Trimble Everest Plus multipath mitigation
  • Advanced RF Spectrum Monitoring and Analysis
  • Proven low-elevation tracking technology

With the option of utilizing OmniSTAR or RTX services, the BX992 delivers varying levels of performance down to centimeter-level without the use of a base station.

Robust centimeter accurate solutions

The Trimble BX992 integrates the latest in precision inertial sensors in a compact package. With the BX992 you are buying a robust navigation solution, not just a GNSS receiver.
Key features include:

  • High update rate position and orientation solutions
  • Dual antenna for rapid heading alignment
  • Continuous positioning in GNSS denied environments
  • Lever arm calculation from antenna to navigation point of interest
  • Robust Moving Baseline RTK for precision landing on moving platforms

Flexible Interfacing

The Trimble BX992 was designed for easy integration and rugged dependability. Customers benefit from the Ethernet connectivity available on the board, allowing high speed data transfer and configuration via standard web browsers. USB, CAN and RS-232 are also supported. Just like other Trimble embedded technologies, easy to use software commands simplify integration and reduce development times. An intuitive 3D interactive graphical web page allows easy input of lever arms. Dynamic and graphic models for various vehicle types can also be selected.

Different configurations of the module are available. These include everything from a DGPS L1 unit all the way to a four constellation triple frequency RTK unit. All features are password-upgradeable, allowing functionality to be upgraded as your requirements change.

Les caractéristiques produits sont en anglais pour respecter les données du fournisseur.

Technical specifications1

  • Trimble Maxwell 7 Technology
  • Onboard Advanced MEMS inertial sensors
  • Position Antenna based on 336 Channel Maxwell 7 chip :
    • GPS: L1 C/A, L2E, L2C, L5
    • BeiDou: B1, B2, B313
    • GLONASS: L1 C/A, L2 C/A, L3 CDMA13
    • Galileo2: E1, E5A, E5B, E5AltBOC, E614
    • IRNSS: L5
    • QZSS: L1 C/A, L1 SAIF, L2C, L5, LEX
    • SBAS: L1 C/A, L5
    • MSS L-Band: OmniSTAR, Trimble RTX
  • Vector Antenna based on second 336 Channel Maxwell 7 chip:
    • GPS: L1 C/A, L2E, L2C, L5
    • BeiDou: B1, B2, B3
    • GLONASS: L1 C/A, L2 C/A, L3 CDMA14
    • Galileo2: E1, E5A, E5B, E5AltBOC, E614
    • IRNSS: L5
    • QZSS: L1 C/A, L1 SAIF, L1C, L2C, L5, LEX
  • High precision multiple correlator for GNSS pseudorange measurements
  • Trimble Everest Plus multipath mitigation
  • Advanced RF Spectrum Monitoring and Analysis
  • Unfiltered, unsmoothed pseudorange measurements data for low noise, low multipath error, low time domain correlation and high dynamic response
  • Very low noise GNSS carrier phase measurements with <1 mm precision in a 1 Hz bandwidth
  • Proven Trimble low elevation tracking technology
  • Reference outputs/inputs
    • CMR, CMR+, sCMRx, RTCM 2.1, 2.2, 2.3, 3.0, 3.112, 3.2
  • Navigation outputs
  • 1 Pulse Per Second Output
  • Event Marker Input Support
  • Supports Fault Detection & Exclusion (FDE), Receiver Autonomous Integrity Monitoring (RAIM)


  • 1 USB 2.0 Device port
  • 1 LAN Ethernet port:
    • Supports links to 10BaseT/100BaseT auto-negotiate networks
    • All functions are performed through a single IP address simultaneously—including web GUI access and raw data streaming
    • Network Protocols supported
      • HTTP (web GUI)
      • NTP Server
      • NMEA, GSOF, CMR over TCP/IP or UDP
      • NTripCaster, NTripServer, NTripClient
      • mDNS/uPnP Service discovery
      • Dynamic DNS
      • Email alerts
      • Network link to Google Earth
      • Support for external modems via PPP
      • RDNIS Support
  • 2 x RS232 ports
    • Baud rates up to 460,800
  • Control Software: HTML web browser, Internet Explorer, Firefox, Safari, Opera, Google Chrome
  • 1 CAN Port

Performance specifications

  • Time to First Fix (TTFF)7
    • Cold Start8 : <45 seconds
    • Warm Start9 : <30 seconds
    • Signal Re-acquisition : <2 seconds
  • Velocity Accuracy3 , 4
    • Horizontal : 0.007 m/sec
    • Vertical : 0.020 m/sec
  • Maximum acceleration GNSS tracking : +/- 11g
  • Inertial Sensors
    • Maximum acceleration : +/- 6 g
    • Maximum angular rate : +/-350 deg/sec
  • Maximum Operating Limits10
    • Velocity : 515 m/sec
    • Altitude 18,000 m
  • RTK initialization time3 : typically <8 seconds
  • RTK initialization reliability3 : >99.9%
  • Position Latency5 : <20ms
  • Maximum Position/Attitude Update Rate : 100 Hz

Physical and electrical characteristics

  • Size : 185 mm x 93 mm x 43 mm
  • Power : 9 V DC to 30V DC
    Typical 3.0 W (L1/L2 GPS + L1/L2 GLONASS)
  • Weight : 0.75 kg
  • Connectors
    • I/O : D-sub DE9 and DA26
    • GNSS Antenna : 2 x TNC (Female)
  • Antenna LNA Power Input
    • Input voltage : 3.3 V DC to 5 V DC
    • Maximum current : 400 mA
  • Minimum required LNA Gain : +32.0 dB

Environmental characteristics11

  • Temperature
    • Operating : –40 °C to +75 °C
    • Storage : –55 °C to +85 °C
  • Vibration : MIL810F, tailored
    Random 6.2 gRMS operating
    Random 8 gRMS survival
  • Mechanical shock : MIL810D
    ±40 g 10ms perating
    ±75 g 6ms survival
  • Operating Humidity : 5% to 95% R.H. non-condensing, at +60 °C
  • IP Rating : IP67

1 Trimble BX992 is available in a variety of software configurations. Specifications shown reflect full capability.
2 Developed under a License of the European Union and the European Space Agency.
3 May be affected by atmospheric conditions, signal multipath, and satellite geometry. Initialization reliability is continuously monitored to ensure highest quality.
4 1 sigma level, when using Trimble Zephyr 2/3 antennas, Add 1 ppm for RTK position accuracies.
5 At maximum output rate.
6 GPS only and depends on SBAS System performance. FAA WAAS accuracy specifications are <5 m 3DRMS.
7 Typical observed values.
8 No previous satellite (ephemerides / almanac) or position (approximate position or time) information.
9 Ephemerides and last used position known
10 As required by the U.S. Department of Commerce to comply with export licensing restrictions.
11 Dependent on appropriate mounting/enclosure design.
12 Input only network correction
13 The hardware of this product is designed for Beidou B3 compatibility (trial version) and its firmware will be enhanced to fully support such new signals as soon as the officially published signal interface control documentation (ICD) becomes available.
14 There is no public GLONASS L3 CDMA or Galileo E6 ICD. The current capability in the receivers is based on publicly available information. As such, Trimble cannot guarantee that these receivers will be fully compatible.
15 Trimble RTX and OmniSTAR accuracies depend on correction service chosen. Trimble CenterPoint RTX provides <4cm horizontal accuracy 95% of the time with initializations of less than 30 minutes.
16 Also available in configurations with RTK accuracies limited to 10 and 30 centimeters

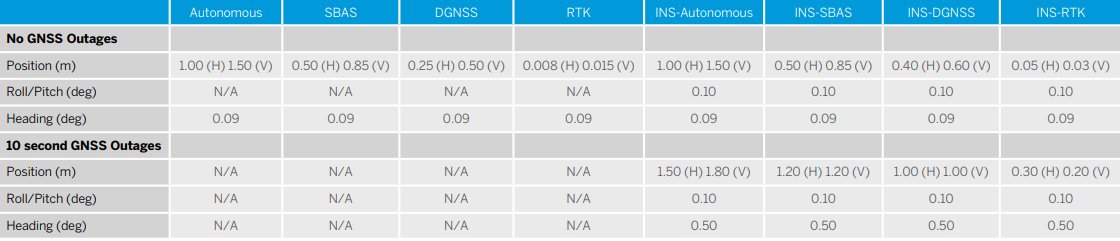

Positioning specification3,4,14,15

Trimble BX992

Ordering information

  • Evaluation Kit : Includes interface board, power supply

  • Garantie : 2 ans.
