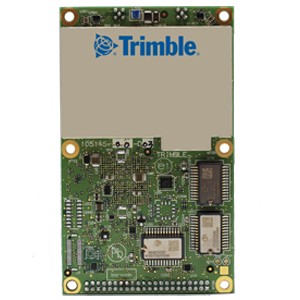

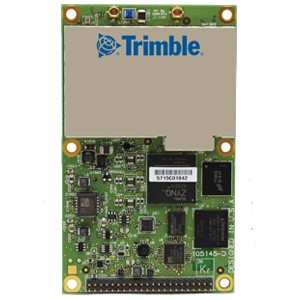

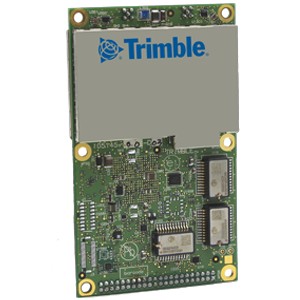

The BD992-INS is a dual-antenna receiver with an integrated inertial navigation system. It is a robust navigation system that supports position and orientation at high update rates.
GNSS AND INERTIAL TIGHT
Taking advantage of Trimble’s expertize in both GNSS and Inertiel technology the Trimble BD992-INS module has been designed for applications requiring continuous centimeter accuracy in a compact package. By integrating inertial sensors on the same module, robust high accuracy positions and orientations are produced in all environments.
Description en anglais.
The Trimble BD992-INS supports triple frequency for the GPS, GLONASS, BeiDou and Galileo constellations. As the number of satellites in the constellations grows the BD992-INS is ready to take advantage of the additional signals. This delivers the quickest and most reliable RTK initializations for centimeter positioning. For applications that do not require centimeter accuracy the BD992-INS integrated GNSS-Inertial engine also delivers high accuracy GNSS, DGNSS positions in the most challenging environments such as urban canyons.With the latest Trimble Maxwell™ 7 Technology, the BD992-INS provides :
With the option of utilizing OmniSTAR or RTX services, the BD992-INS delivers varying levels of performance down to centimeter level without the use of a base station.
The Trimble BD992-INS integrates the latest in precision inertial sensors in a compact package. With the BD992-INS you are buying a robust navigation solution, not just a GNSS receiver. Key features include :
The Trimble BD992-INS was designed for easy integration and rugged dependability. Customers benefit from the Ethernet connectivity available on the board, allowing high speed data transfer and configuration via standard web browsers. USB, CAN and RS-232 are also supported. Just like other Trimble embedded technologies, easy to use software commands simplify integration and reduce development times. An intuitive 3D interactive graphical web page allows easy input of lever arms. Dynamic and graphic models for various vehicle types can also be selected. Different configurations of the module are available. These include everything from a DGPS L1 unit all the way to a four constellation triple frequency RTK unit. All features are passwordupgradeable, allowing functionality to be upgraded as your requirements change.
Les caractéristiques produits sont en anglais pour respecter les données du fournisseur.
PHYSICAL AND ELECTRICAL CHARACTERISTICS |
|
| Size | 100 mm x 60 mm x 11.6 mm |
| Power | 3.3 V DC +5%/ - 3% Typical 1.5 W (L1/L2 GPS + L1/L2 GLONASS) |
| Weight | 62 grams |
| Connectors | I/O: 44 pin header GNSS Antenna: 2 x MMCX receptacle |
| Antenna LNA Power Input: | Input voltage: 3.3V DC to 5V DC Maximum current: 400 mA Minimum required LNA Gain: 31.0 dB (> 35 dB Recommended) |

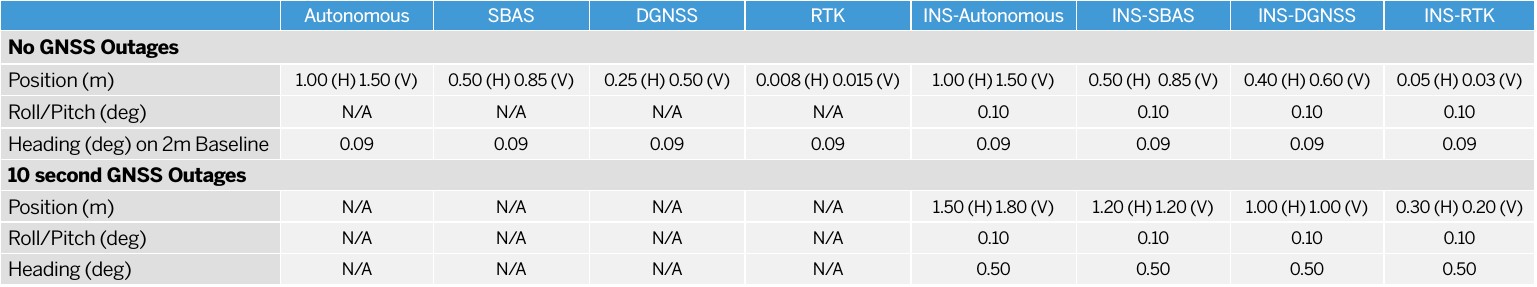

PERFORMANCE SPECIFICATIONS |
|
| Time to First Fix (TTFF)7 Cold Start8 Warm Start9 Signal Re-acquisition |
<45 seconds <30 seconds <2 seconds |
| Velocity Accuracy3,4 Horizontal Vertical |
0.007 m/sec 0.020 m/sec |
| Inertial Sensors Maximum acceleration Maximum angular rate |
+/-6g +/-350 deg/sec |
| Maximum Operating Limits10 Velocity Altitude |
515 m/sec 18,000 m |
| RTK initialization time3 | typically <1 minute |
| RTK initialization reliability3 | >99.9% |
| Position latency5 | <20ms |
| Maximum Position/Atitude Update Rate | 100 Hz |
PHYSICAL AND ELECTRICAL CHARACTERISTICS |
|
| Size | 100 mm x 60 mm x 11.6 mm |
| Power | 3.3 V DC +5%/–3% Typical 2.6 W (L1/L2 GPS + L1/L2 GLONASS) |
| Weight | 60 grams |
| Connectors I/O GNSS Antenna |
44 -pin header 2 x MMCX receptacle |
| Antenna LNA Power Input Input voltage Maximum current |
3.3V DC to 5V DC 400 mA |
| Minimum required LNA Gain | 31.0 dB (> 35 dB Recommended) |
ENVIRONMENTAL CHARACTERISTICS11 |
|
| Temperature Operating Storage |
-40 °C to +75 °C -55 °C to +85 °C |
| Vibration | MIL810F, tailored Random 6.2 gRMS operating Random 8 gRMS survival |
| Mechanical shock | MIL810D +/-40 g 10ms operating +/-75 g 6ms survival |
| Operating Humidity | 5% to 95% R.H. non-condensing, at +60 °C |
| Antenna LNA Power Input Input voltage Maximum current |
3.3V DC to 5V DC 400 mA |
| Minimum required LNA Gain | 31.0 dB (> 35 dB Recommended) |
1 Trimble BD992-INS is available in a variety of software configurations. Specifications shown reflect full capibility.
2 Developed under a License of the European Union and the European Space Agency.
3 May be affected by atmospheric conditions, signal multipath, and satellite geometry. Initialization reliability is continuously monitored to ensure highest quality.
4 1 sigma level, when using Trimble Zephyr 2/3 antennas, Add 1 ppm for RTK position accuracies.
5 At maximum output rate.
6 GPS only and depends on SBAS System performance. FAA WAAS accuracy specifications are <5 m 3DRMS.
7 Typical observed values.
8 No previous satellite (ephemerides / almanac) or position (approximate position or time) information.
9 Ephemerides and last used position known
10 As required by the U.S. Department of Commerce to comply with export licensing restrictions.
11 Dependent on appropriate mounting/enclosure design.
12 Input only network correction
13 The hardware of this product is designed for Beidou B3 compatibility (trial version) and its firmware will be enhanced to fully support such new signals as soon as the officially published signal interface control documentation (ICD) becomes available.
14 There is no public GLONASS L3 CDMA or Galileo E6 ICD. The current capability in the receivers is based on publicly available information. As such, Trimble cannot guarantee that these receivers will be fully compatible.
15 Trimble RTX and OmniSTAR accuracies depend on correction service chosen. Trimble CenterPoint RTX provides <4cm horizontal accuracy 95% of the time with initializations of less than 30 minutes.
Specifications subject to change without notice.
